BETAFPV Matrix 5IN1 1S Brushless FC 12A ESC ELRS 2.4G for Air65 II Air75 II

BETAFPV Matrix 5IN1 1S Brushless FC 12A ESC ELRS 2.4G for Air65 II Air75 II

$79.66 USD
$79.66 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • All-in-One Integration: Combines FC, ESC, OSD, Serial ELRS 2.4GHz RX, and a 5.8G 400m VTX into a single compact unit. Built around a powerful STM32G473CEU6 processor and ICM42688P gyro for precise control. Features 16MB Blackbox, BetaFlight OSD (AT7456E), multiple UARTs, and a 5V/3A BEC
  • Upgraded 12A Continuous ESC: ESC delivers 12A continuous current (18A peak), a major upgrade from previous 5A designs. Achieved by integrating 12 onboard MOS tubes to meet the high surge demands of 1S whoops, paired with gold-plated JST1.25 motor connectors for superior conductivity and powerful, responsive propulsion
  • Enhanced Durability & Crash Protection: Features a robust 3-point mounting system that creates cushioning space during impacts, reducing stress on core components and lowering damage rates by up to 80%. Combined with a thickened 1.0mm PCB and optimized component layout for maximum crash survival
  • Advanced Core Features & Firmware: Onboard Serial ELRS 2.4G RX (V3.4.3) supports the CRSF protocol and enables easy firmware updates via Wi-Fi or passthrough. Pre-flashed with optimized Betaflight 4.5.3 firmware for the ICM42688P gyro. ESC runs Bluejay firmware (A_X_5_96KHz_V0.19.hex for BB51), supporting DShot300/600, RPM filtering, and customizable PWM frequencies up to 96KHz

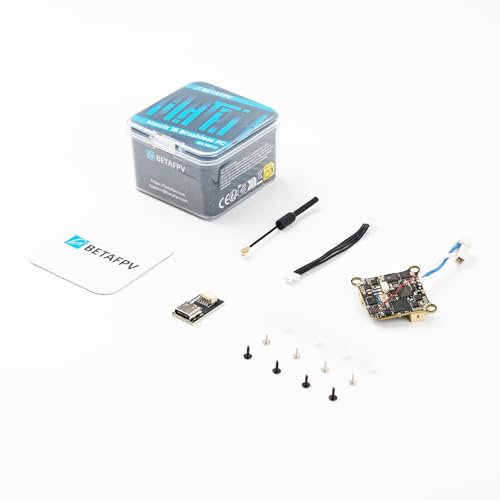

  • Solder-Free Option Only: We only released the solder-free version on amazon, and you will receive 1 * Matrix 1S 5IN1 II Brushless Flight Controller (Solder-free Version), 1 * Type-C to SH1.0 Adapter, 1 * SH1.0-4Pin Adapter Cable, 1 * 5.8G Antenna, 4 * M1.2*4 Self-tapping Screws, 4 * M1.4*5 Self-tapping Screws, 4 * Shock Absorbing Balls

Overview

  • Brand: BETAFPV
  • Model Name: Matrix 5IN1 1S
  • Special Feature: Advanced Integration and Performance Features
  • Age Range (Description): Adult
  • Color: Black
  • Video Capture Resolution: 1080p
  • Connectivity Technology: 2.4GHz, 5.8GHz
  • Included Components: Flight Controller, Adapters, Antenna, Screws, Shock Absorbing Balls
  • Video Capture Format: MP4
  • Control Type: Remote Control
